Artiza LTE Tester DuoSIMはユーザの多様な開発ターゲット（eNBキャパシティ）に対応するため、DuoSIM-1000・DuoSIM-840・DuoSIM-420・DuoSIM-210・DuoSIM-64の5システムを用意しました（モデルネームの番号はサポートするUE数を表しています）。業界初の大容量キャパシティ・テスト環境として登場し、移動体通信において最も先進的といわれる日本市場において強く支持され続けてきた第1世代製品。その品質とパフォーマンスを踏襲したことに加え、キャパシティを840 UEs/sectorから1,000 UEs/sectorへとさらに拡張しています。DuoSIM-1000とDuoSIM-840は大容量Macrocellに対応、DuoSIM-420・210はOmnicellからMacrocellに対応し、DuoSIM-64はPico/Femtocellに対応しています。全てのハードウェア・ソフトウェアリソースおよびテストデータはシステム間で互換性を維持しています。DuoSIMのキャパシティの範囲をFigure 6に示します。

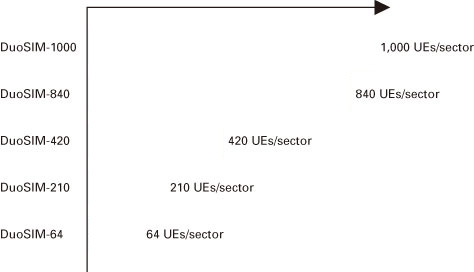

Figure 1 : DuoSIM Capacity Coverage for UE Simulation
DuoSIM-1000 Specification
| Parameter | Specificationn |
Description |
|---|---|---|
| Chassis | AZP-1400/600 |
Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system |
|
| No. of UEs to simulate | 1,000 UEs/sector |
Maximum 6,000 UEs/system |
| No. of MMEs to simulate | 8 |
One association/MME |
| No. of S-GWs to simulate | 8 |
One IP/S-GW |
| No. of eNB to simulate | 8 |
One association/eNB |
| No. of bearers to simulate | 6 bearers/UE |
36,000 bearers/system |
| No. of GbE I/Fs | 2 |
Including external I/F |
| DL Throughput | 150 Mbps/UE 900 Mbps/system |
|
| UL Throughput | 50 Mbps/UE 300 Mbps/system |
| Parameter | Specificationn | Description |
|---|---|---|
| Chassis | AZP-1400/600 | Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system | |
| No. of UEs to simulate | 1,000 UEs/sector | Maximum 6,000 UEs/system |
| No. of MMEs to simulate | 8 | One association/MME |
| No. of S-GWs to simulate | 8 | One IP/S-GW |
| No. of eNB to simulate | 8 | One association/eNB |
| No. of bearers to simulate | 6 bearers/UE | 36,000 bearers/system |
| No. of GbE I/Fs | 2 | Including external I/F |
| DL Throughput | 150 Mbps/UE | |
| 900 Mbps/system | ||
| UL Throughput | 50 Mbps/UE | |
| 300 Mbps/system |
DuoSIM-840 Specification
| Parameter | Specificationn |
Description |
|---|---|---|
| Chassis | AZP-1400/600 |
Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system |
|
| No. of UEs to simulate | 840 UEs/sector |
Maximum 5,040 UEs/system |
| No. of MMEs to simulate | 8 |
One association/MME |
| No. of S-GWs to simulate | 8 |
One IP/S-GW |
| No. of eNB to simulate | 8 |
One association/eNB |
| No. of bearers to simulate | 6 bearers/UE |
30,240 bearers/system |
| No. of GbE I/Fs | 2 |
Including external I/F |
| DL Throughput | 150 Mbps/UE 900 Mbps/system |
|
| UL Throughput | 50 Mbps/UE 300 Mbps/system |
| Parameter | Specificationn | Description |
|---|---|---|
| Chassis | AZP-1400/600 | Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system | |
| No. of UEs to simulate | 840 UEs/sector | Maximum 5,040 UEs/system |
| No. of MMEs to simulate | 8 | One association/MME |
| No. of S-GWs to simulate | 8 | One IP/S-GW |
| No. of eNB to simulate | 8 | One association/eNB |
| No. of bearers to simulate | 6 bearers/UE | 30,240 bearers/system |
| No. of GbE I/Fs | 2 | Including external I/F |
| DL Throughput | 150 Mbps/UE | |
| 900 Mbps/system | ||
| UL Throughput | 50 Mbps/UE | |
| 300 Mbps/system |
DuoSIM-420 Specification
| Parameter | Specificationn |
Description |
|---|---|---|
| Chassis | AZP-1400/600 |
Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system |
|
| No. of UEs to simulate | 420 UEs/sector |
Maximum 2,520 UEs/system |
| No. of MMEs to simulate | 8 |
One association/MME |
| No. of S-GWs to simulate | 8 |
One IP/S-GW |
| No. of eNB to simulate | 8 |
One association/eNB |
| No. of bearers to simulate | 6 bearers/UE |
15,120 bearers/system |
| No. of GbE I/Fs | 2 |
Including external I/F |
| DL Throughput | 150 Mbps/UE 900 Mbps/system |
|
| UL Throughput | 50 Mbps/UE 300 Mbps/system |
| Parameter | Specificationn | Description |
|---|---|---|
| Chassis | AZP-1400/600 | Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system | |
| No. of UEs to simulate | 420 UEs/sector | Maximum 2,520 UEs/system |
| No. of MMEs to simulate | 8 | One association/MME |
| No. of S-GWs to simulate | 8 | One IP/S-GW |
| No. of eNB to simulate | 8 | One association/eNB |
| No. of bearers to simulate | 6 bearers/UE | 15,120 bearers/system |
| No. of GbE I/Fs | 2 | Including external I/F |
| DL Throughput | 150 Mbps/UE | |
| 900 Mbps/system | ||
| UL Throughput | 50 Mbps/UE | |
| 300 Mbps/system |
DuoSIM-210 Specification
| Parameter | Specificationn |
Description |
|---|---|---|
| Chassis | AZP-1400/600 |
Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system |
|
| No. of UEs to simulate | 210 UEs/sector |
Maximum 1,260 UEs/system |
| No. of MMEs to simulate | 8 |
One association/MME |
| No. of S-GWs to simulate | 8 |
One IP/S-GW |
| No. of eNB to simulate | 8 |
One association/eNB |
| No. of bearers to simulate | 6 bearers/UE |
7,560 bearers/system |
| No. of GbE I/Fs | 2 |
Including external I/F |
| DL Throughput | 150 Mbps/UE 900 Mbps/system |
|
| UL Throughput | 50 Mbps/UE 300 Mbps/system |
| Parameter | Specificationn | Description |
|---|---|---|
| Chassis | AZP-1400/600 | Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system | |
| No. of UEs to simulate | 210 UEs/sector | Maximum 1,260 UEs/system |
| No. of MMEs to simulate | 8 | One association/MME |
| No. of S-GWs to simulate | 8 | One IP/S-GW |
| No. of eNB to simulate | 8 | One association/eNB |
| No. of bearers to simulate | 6 bearers/UE | 7,560 bearers/system |
| No. of GbE I/Fs | 2 | Including external I/F |
| DL Throughput | 150 Mbps/UE | |
| 900 Mbps/system | ||
| UL Throughput | 50 Mbps/UE | |
| 300 Mbps/system |
DuoSIM-64 Specification
| Parameter | Specificationn |
Description |
|---|---|---|
| Chassis | AZP-1400/600 |
Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system |
|
| No. of UEs to simulate | 64 UEs/sector |
Maximum 64 UEs/system |
| No. of MMEs to simulate | 8 |
One association/MME |
| No. of S-GWs to simulate | 8 |
One IP/S-GW |
| No. of eNB to simulate | 8 |
One association/eNB |
| No. of bearers to simulate | 8 bearers/UE |
512 bearers/system |
| No. of GbE I/Fs | 2 |
Including external I/F |
| DL Throughput | 150 Mbps/UE 150 Mbps/system |
|
| UL Throughput | 50 Mbps/UE 50 Mbps/system |
| Parameter | Specificationn | Description |
|---|---|---|
| Chassis | AZP-1400/600 | Single Chassis |
| No. of sectors per chassis | 3 sectors/chassis (AZP-1400) 1 sector/chassis (AZP-600) |
|
| No. of sectors | 6 sectors/system | |
| No. of UEs to simulate | 64 UEs/sector | Maximum 64 UEs/system |
| No. of MMEs to simulate | 8 | One association/MME |
| No. of S-GWs to simulate | 8 | One IP/S-GW |
| No. of eNB to simulate | 8 | One association/eNB |
| No. of bearers to simulate | 8 bearers/UE | 512 bearers/system |
| No. of GbE I/Fs | 2 | Including external I/F |
| DL Throughput | 150 Mbps/UE | |
| 150 Mbps/system | ||
| UL Throughput | 50 Mbps/UE | |
| 50 Mbps/system |
